CCS 2017b 3. Gyak - előben

Teljes Matlab script (és live script) kiegészítő függvényekkel.
Tekintsd meg LiveEditor nézetben is!

s = tf('s');
H = (s^2 + 1) / ( (s^2 + 2*s + 5) * (s + 1) )
figure, impulse(H)

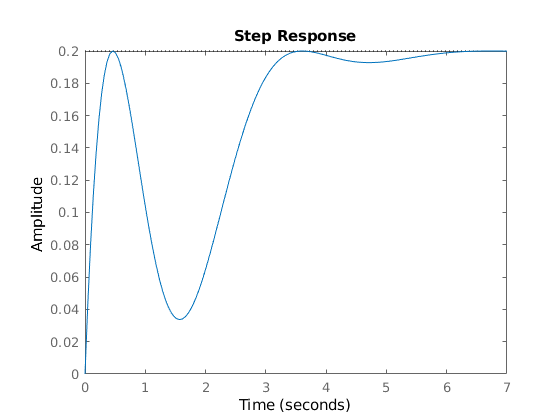

figure, step(H)

Output:

H =

         s^2 + 1
  ---------------------
  s^3 + 3 s^2 + 7 s + 5

Continuous-time transfer function.

t = linspace(0,10,1000);
u = sin(2*t);
lsim(H,u,t)
opts = bodeoptions;
opts.MagUnits = 'abs';
bodeplot(H,opts), grid on

Published with MATLAB® R2017b, and sanitarized by BeautifulSoup (Python script using BSoup is written by Polcz).
